Product Summary

The 1MBI600PX-140 is an IGBT module. The 1MBI600PX-140 is used in high power switching, A.C. motor controls, D.C. motor controls, uninterruptible power supply.

Parametrics

1MBI600PX-140 absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1400V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector current, continuous, IC: 800A at Tc=25℃; 600A at Tc=80℃; 1ms, IC pulse: 1600A at Tc=25℃; 1200A at Tc=80℃; -IC: 600A; 1ms, -IC pulse: 1200A; (4)Max power dissipation, PC: 4100W; (5)Operating temperature, Tj: 150℃; (6)Storage temperature, Tstg: -40 to 125℃; (7)Isolation voltage, Vis: AC 2500V.

Features

1MBI600PX-140 features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance.

Diagrams

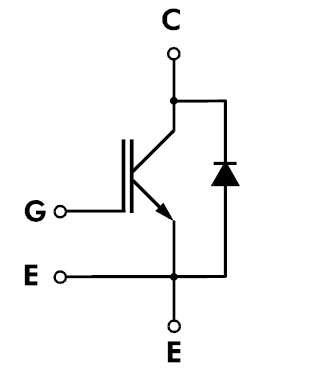

1MBI600PX-140 pin connection
