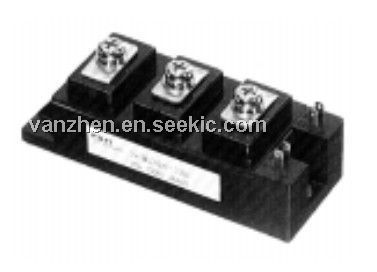

Product Summary

The 1MBI400SA-120 is an IGBT module. Applications are (1)Inverter for motor drive; (2)AC and DC servo drive amplifier; (3)Uninterruptible power supply; (4)Industrial machines, such as Welding machines.

Parametrics

1MBI400SA-120 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 1200 V; (2)Gate-Emitter voltaga VGES: ±20 V; (3)Collector current continuous Tc=25°C IC: 600 A; Tc=80°C: 400 A; (4)Collector current 1ms Tc=25°C IC pulse: 1200 A; 1ms Tc=80°C IC pulse: 80 A; (5)Collector current -IC: 400 A; 1ms -IC pulse: 800 A; (6)Max. power dissipation PC: 3100 W; (7)Operating temperature Tj: +150 °C; (8)Storage temperature Tstg: -40 to +125 °C; (9)Isolation voltage Vis: AC 2500 (1min.)V; (10)Screw torque Mounting: 3.5 N·m; Terminals: 4.5 N·m; Terminals: 1.7 N·m.

Features

1MBI400SA-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

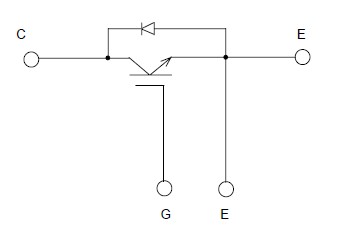

1MBI400SA-120pin connection
