Product Summary

The 1MBI300NA-120 is an IGBT module. It is suitable for inverter for motor drive, AC and DC servo drive amplifer, uninterruptile power supply and industrial machines, such as welding machines.

Parametrics

1MBI300NA-120 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)gate-emitter votlage, VGES: ±20V; (3)collector current, continuous, IC: 300A; 1ms, IC pulse: 600A; continuous, -ic: 300A; 1ms, -IC pulse: 600A; (4)max power dissipation, PC: 1800W; (5)operating temperature, Tj: 150℃; (6)storage temperature, Tstg: -40 to 125℃; (7)net weight: 415g; (8)isolation voltage, AC 1min, Visol: 2500V.

Features

1MBI300NA-120 features: (1)low saturation voltage; (2)votlage drive; (3)variety of power capacity series.

Diagrams

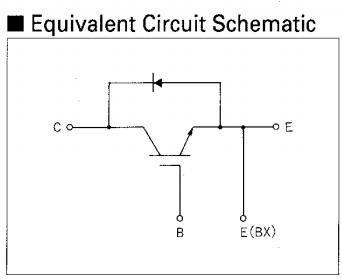

1MBI300NA-120 equivalent circuit schematic
