Product Summary
The BSM151A4R is a simopac module.
Parametrics
BSM151A4R absolute maximum ratings: (1)Drain-source voltage VDS: 500 V; (2)Drain-gate voltage, RGS = 20 kΩ VDGR: 500V; (3)Gate-source voltage VGS: ± 20 V; (4)Continuous drain current, TC = 25 °C ID: 48 A; (5)Pulsed drain current, TC = 25°C ID puls: 192 A; (6)Operating and storage temperature range Tj , Tstg: – 55 … + 150 °C; (7)Power dissipation, TC = 25 °C Ptot: 625 W; (8)Insulation test voltage 2), t = 1 min. Vis: 2500 Vac; (9)Creepage distance, drain-source: 16 mm.
Features
BSM151A4R features: (1)Power module; (2)Single switch; (3)N channel; (4)Enhancement mode; (5)Package with insulated metabase plate; (6)Package outline/Circuit diagram.

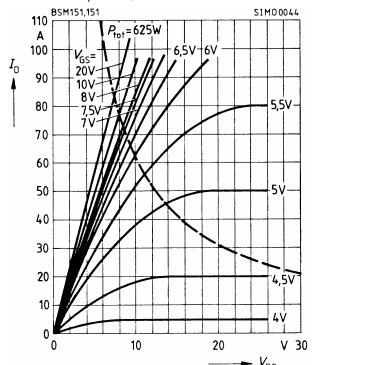

Diagrams
