Product Summary

The HFE19-60 is a minimature high power latching relay.

Parametrics

HFE19-60 absolute maximum ratings: (1)insulation resistance: 1000MΩ at 500VDC; (2)operate time: 20ms max; (3)release time: 20ms max; (4)vibration resistance: 10 to 55Hz 1.5mm DA; (5)humidity: 5 to 85% RH; (6)ambient temperature: -40 to 70°C.

Features

HFE19-60 features: (1)90A Latching relay; (2)The relay can stand 2200A peak current for 10ms; (3)Carrying the 6000A short circuit current without explosion; (4)4kV dielectric strength (between coil and contact) ; (5)Environmental friendly product (RoHS compliant); (6)Outline Dimensions: (38.0 x 30.0 x 16.5) mm.

Diagrams

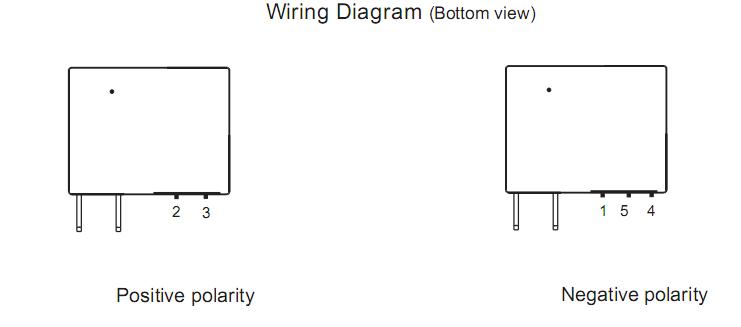

HFE19-60 block diagram
