Product Summary

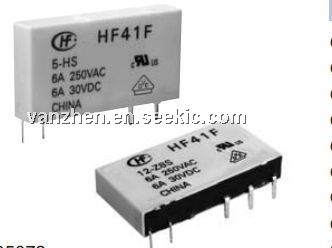

The HF41F is a subminiature power relay.
Parametrics
HF41F absolute maximum ratings: (1)Insulation resistance: 1000 Ω; (2)Dielectric Between coil & contacts: 4000 VAC 1min; (3)Dielectric Between open contacts: 1000 VAC 1min; (4)Operate time: 8 ms max; (5)Release time: 4 ms max; (6)Shock resisitance Functional: 49 m/s; (7)Shock resisitance Destructive: 980 m/s; (8)Vibration resistance: 10 Hz to 55 Hz 1 mm DA; (9)Humidity: 5 % to 85 % RH; (10)Ambient temperature: -40 ℃ to 85 ℃; (11)Termination: PCB; (12)Unit weight: Approx.5g; (13)Construction: Plastic sealed, Flux proofed.
Features
HF41F features: (1)Slim size; (2)High breakdown voltage 4 kV; (3)Surge voltage up to 6 kV; (4)Meeting VDE 0700, 0631 reinforce insulation; (5)High sensitive: Approx.170 mW; (6)Sockets available; (7)1 Form A and 1 Form C configurations; (8)Environmental friendly product; (9)Outline Dimensions: (28.0 × 5.0 × 15.0) mm.

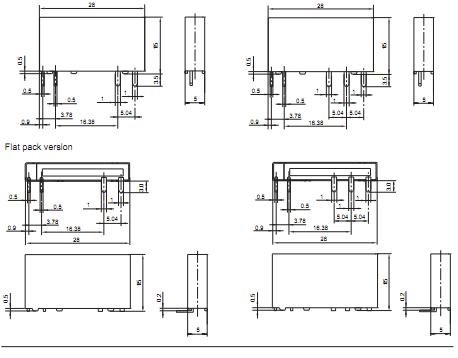

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HF41F |
Other |
|
Data Sheet |
Negotiable |
|
||||
