Product Summary

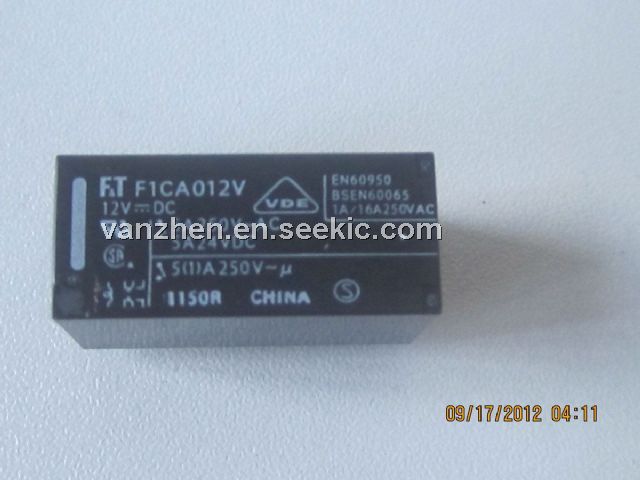

The f1ca012v is a power relay. The f1ca012v is 2 poles-5A low profile type.

Parametrics

f1ca012v absolute maximum ratings: (1) maximum carrying current*1: 7A; (2) maximum switching ratings: 1,250VA/120W; (3) maximum switching voltage: 400VAC/300VDC; (4) maximum switching load*2: 10mA 5VDC; (5) nominal power (at 20°C) : 530mW, 110V type: 550mW; (6) operating temperature: -40 to +75°C (no frost) , -40 to +70°C (-RG type) .

Features

f1ca012v features: (1) low profile power relay (height 16.5mm) employing unique construction; (2) DPST/DPDT 5A, TV-3 rating available; (3) higher isolation by employing reinforced insulation construction; (4) pin configuration compatible to VB/FBR620; (5) UL. CSA, VDE, SEMKO, SEV, CQC, FIMKO, IMQ, DEMKO, NEMKO recognized; (6) RoHS complaint since date code: 0434R.

Diagrams

f1ca012v circuit
