HFD4

subminiature signal relay, 70mΩ, 2A, 10mV, Hongfa Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
100 ~ 1000 :	0.80 / Piece
1000 ~ 100000 :	0.50 / Piece

PartNumber:: HFD4

Brand:: Hongfa Technology - HONGFA | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-22

From Other Seller

Part Number:HFD4
US $0.50 - 1.00
Quantity:

piece

Product Summary

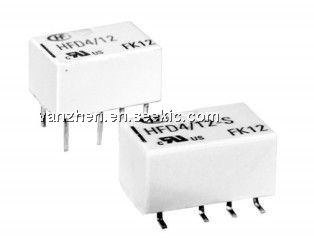

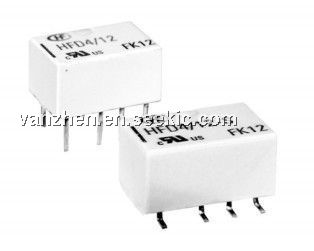

The HFD4 is a subminiature signal relay.

Parametrics

HFD4 absolute maximum ratings: (1)contact arrangement: 2C; (2)contact resistance: 70mΩ max at 0.1A 6VDC; (3)contact rating: 2A 30VDC; (4)max switching current: 2A; (5)max switching voltage: 250VAC/220VDC; (6)max switching power: 62.5VA/60W; (7)min applicable load: 10mV/10uA.

Features

HFD4 features: (1)offers excellent board space savings; (2)surge withstand voltage up to 2500V, metts FCC part 68 and Telecordia; (3)metts EN60950/EN1003; (4)SMT and DIP types available; (5)high contact capacity 2A 30VDC; (6)low power consumption; (7)single side stable and latching type available; (8)environmental friendly product.
