Product Summary

The TRA1 is a Low Signal Relay.

Parametrics

TRA1 absolute maximum ratings: (1)Contact Form: 1A; (2)Contact Material: Silver Alloy; (3)Contact Ratings: 10A 250VAC/30VDC; (4)Max Switching Voltage: 250VAC/110VDC; (5)Max Switching Current: 12A; (6)Max Switching Power: 2500VA/300W; (7)Contact Resistance: 100mΩMax; (8)Life Expectancy Electrical: 100,000; (9)Machanical: 10,000,000.

Features

TRA1 features: (1)Insulation Resistance: 100MΩMin at 500VDC; (2)Dielectric Strength Between Open Contacts: 1000VAC; (3)Between Contacts and coil: 4000VAC; (4)Operate Time: 20ms; (5)Release Time: 10ms; (6)Temperature Range: -40 ℃ to +70 ℃; (7)Shock Resistance Operating Extremes: 10G; (8)Shock Resistance Damage Limits: 100G; (9)Vibration Resistance: 10-55Hz,1.5mm; (10)Humidity: 20-85%; (11)Weight: Approx 11g; (12)Safety Standard.

Diagrams

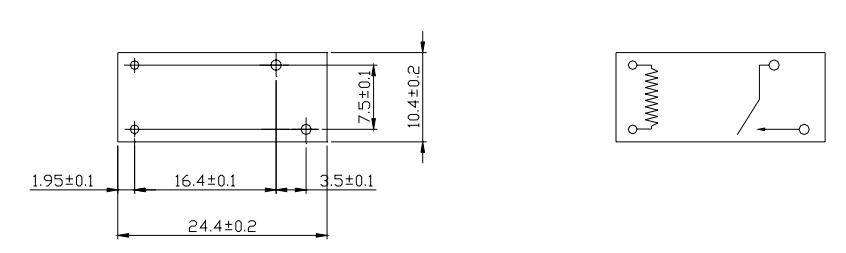

TRA1 block diagram
