Product Summary

The HF37F is a miniature high power relay.

Parametrics

HF37F absolute maximum ratings: (1)insulation resistance: 1000MΩ(at 500VDC); (2)operate time: 20ms.max; (3)release time: 5ms.max; (4)shock resistance: 200m/s(2); (6)ambient temperature:-40 to 70°C.

Features

HF37F features: (1)30A switching capabolity; (2)70A withstands inrush current; (3)TV-15 available; (4)1 Form A configuration; (5)environmental friendly product; (6)outline dimensions:35.2×32.2×24mm.

Diagrams

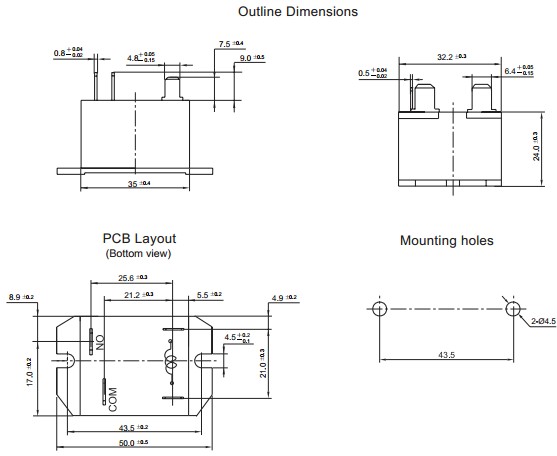

HF37F outline dimension
