Product Summary

The TRFM is a car relay.

Parametrics

TRFM absolute maximum ratings: (1)Contact Form: 1H/1Z; (2)Contact Material: Silver Alloy; (3)Load: Resistive load(COSФ=1); (4)Contact Ratings: 1H: 25A 14VDC; (5)1Z: 20A 14VDC; (6)Max Switching Voltage: 24VDC; (7)Max Switching Current: 25A; (8)Max Switching Power: 350W; (9)Contact Resistance: 50mΩMax at 6VDC 1A.

Features

TRFM features: (1)Max.switching current 25A; (2)Different terminals available; (3)Conform to RoHS,ELV directive.

Diagrams

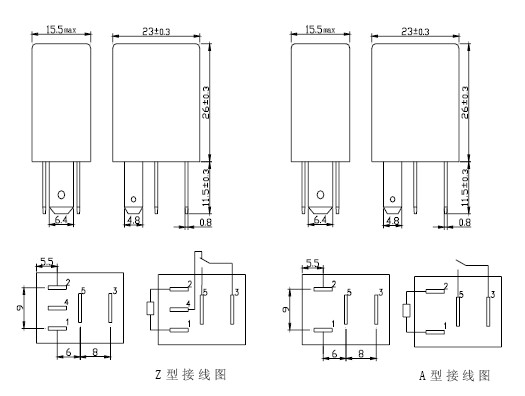

TRFM dimension
