Product Summary

The HF141FF is a miniature high power relay.

Parametrics

HF141FF absolute maximum ratings: (1)Contact arrangement: 1A, 1B, 1C; (2)Contact resistance: 50mΩ (at 1A 6VDC); (3)Max. switching power: 2000V/240W; (4)Max. switching current: 10A; (5)Max. switching voltage: 250VAC/30VDC.

Features

HF141FF features: (1)10A switching capability; (2)1 Form A, 1 Form B, 1 Form C configurations; (3)5kV dielectric strength (between coil and contacts); (4)Sockets available; (5)Wash tight and flux proofed types available; (6)Environmental friendly product (RoHS compliant).

Diagrams

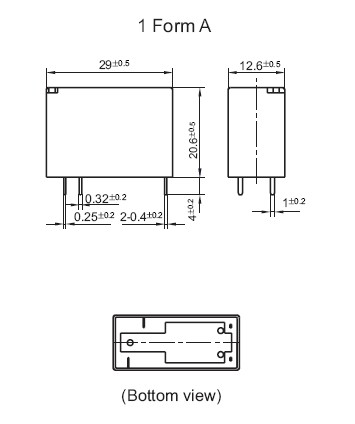

HF141FF dimension
