Product Summary

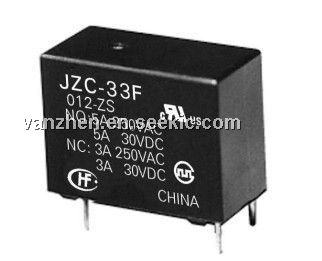

The JZC-33F is a subminiature intermediate power relay.
Parametrics
JZC-33F absolute maximum ratings: (1)Initial insulation resistance: 1000MΩ 500VDC; (2)Dielectric strength between coil and contacts: 4000VAC 1min; Between open contacts: 1000VAC 1min; (3)Operate time (at nomi. Volt.): 8ms; (4)Release time (at nomi. Volt.): 5ms; (5)Ambient temperature: -40 ℃to +70 ℃; (6)Vibration resistance: 1.6mm, 10 to 55Hz; (7)Termination: PCB; (8)Unit weight: Approx. 7g.
Features
JZC-33F features: (1)10A switching capabilities; (2)SPST-NO and SPDT configurations; (3)Subminiature, standard PC layout; (4)Sealed and Unsealed types available.

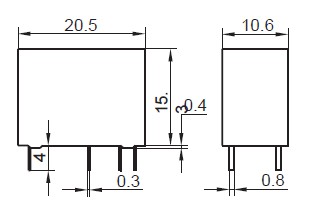

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 JZC-33F |
Other |
|
Data Sheet |
Negotiable |
|
||||
