Product Summary

The TRAW is a car Relay.

Parametrics

TRAW absolute maximum ratings: (1)Contact Form: 1H/1Z/SH/SZ; (2)Contact Material: Silver Alloy; (3)Load: Resistive load(COSФ=1); (4)Contact Ratings: 1H,1Z: 10A 14VDC; SH,SZ: 15A 14VDC; (5)Max Switching Voltage: 75VDC; (6)Max Switching Current: 20A; (7)Max Switching Power: 280W; (8)Contact Resistance: 100mΩMax at 6VDC 1A.

Features

TRAW features: (1)Max.switching current 20A; (2)10A continuous rating 85℃; (3)Different contact form available; (4)Open or sealed cover available; (5)Conform to RoHS,ELV directive.

Diagrams

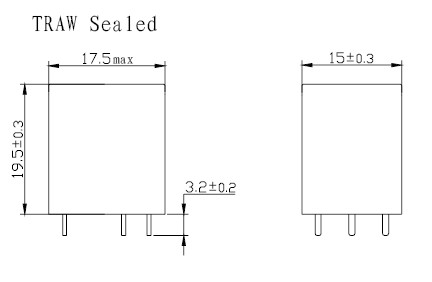

TRAW dimension
