Product Summary

The ZUW154812 is an On-board type DC/DC Converter.

Parametrics

ZUW154812 absolute maximum ratings: (1)Input Voltage: DC 9 to 18V; (2)Output Wattage: 15W; (3)DC Output (V/A): -15 to 30V / -0.5 to 0.5A.

Features

ZUW154812 features: (1)UL recognized, TV approved, CSA certified; (2)Isolated between input-output; (3)Thin profile; (4)Built-in Over Current Protection; (5)RoHS Compliant.

Diagrams

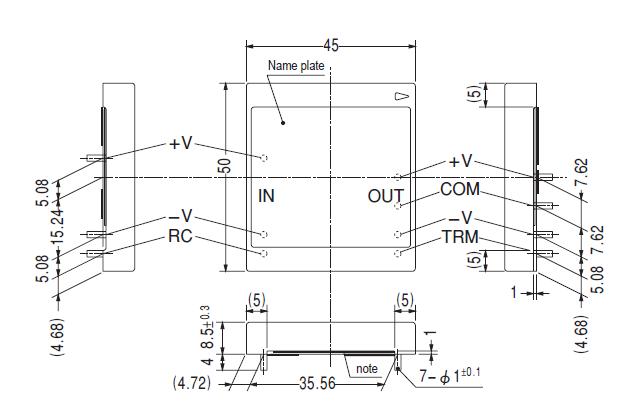

ZUW154812 dimensions
