Product Summary

The VI-AIM-E1 is a Universal AC Input Front End Module. The AIM (Alternating Input Module) is an AC front-end module which interfaces directly with worldwide AC mains. The AIM provides line rectification, EMI/RFI filtering, transient protection and inrush limiting in a half brick package measuring 2.28" x 2.4" x 0.5".

Parametrics

VI-AIM-E1 absolute maximum ratings: (1)AC Line Input: 85V to 264V; (2)Output Voltage: 120 to 373 Vdc ; (3)Efficiency: 97%; (4)Output Power: 250W; (5)Maximum Value of Holdup Capacitance: 1200 μF; (6)Thermal Resistance: 0.4℃/W; (7)Weight: 3.0 Ounces (85 Grams).

Features

VI-AIM-E1 features: (1)Universal Input: 85 to 264Vac; (2)Output Power: 250W; (3)Operating Temperature: 100℃; (4)Efficiency: 97%; (5)Integral EMI Filtering; (6)Input Transient Protection; (7)Inrush Limiting; (8)CE Marked.

Diagrams

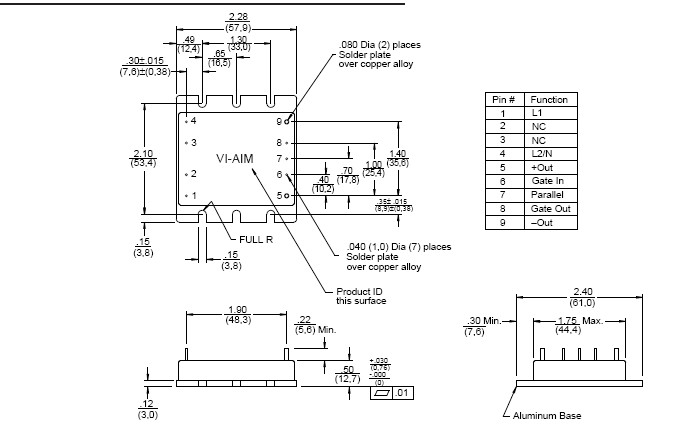

VI-AIM-E1 dimension
