Product Summary
The VI-261-CU is a Battery Charger Current Source Module. It combines Vicor’s industry standard package with the flexibility of a power converter whose output voltage and output current may be independently set. The VI-261-CU is also available in booster versions that enable the designer to create systems capable of multiple kilowatts of output power. With its wide range of input options, the VI-261-CU is compatible with all major battery types.
Parametrics
VI-261-CU general specifications: (1)Nominal Input Voltage:48Vdc, 150Vdc, 300Vdc ; (2)Output Current:0 to 14.5A, 0 to 7.25A, 0 to 3.6A(Refer to Safe Operating Curves below); (3)Current Control Input:1V to 5V; (4)Current Monitor Output:1V to 5V ; (5)Voltage Control Input:0V to 2.5V ; (6)Output Voltage Setpoint Trimmable +10%, -25%:15V, 30V, 60V +/-1%.
Features
VI-261-CU features: (1)Programmable Output Current; (2)Booster Versions Available; (3)Size: 4.6” x 2.4” x 0.5”(116,8 x 61,0 x 12,7); (4)UL, CSA, TUV; (5)Compatible with All Major Battery Types; (6)Inputs: 48, 150, 300Vdc; (7)Outputs: 12, 24, 48Vdc Nom.; (8)Analog Current Monitor; (9)Analog Overvoltage Adjust; (10)CE Marked.

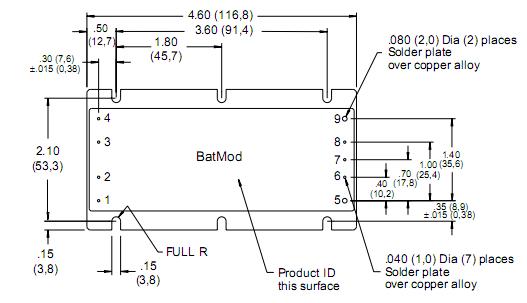

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VI-261-CU |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
|
VI-261-CU-B1 |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
|
VI-261-CU-F1 |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
|
VI-261-CU-F2 |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
|
VI-261-CU-F3 |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
|
VI-261-CU-F4 |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
|
VI-261-CU-S |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
