Product Summary

The V300B3V3C150BL is a DC-DC Converter Module. This DC-DC converter module uses 2nd Generation power processing, control and packaging technologies to provide the performance, flexibility and cost effectiveness expected of a mature power component. For example, a plated-cavity core transformer couples widely separated primary and secondary windings, resulting in low in-toout parasitic capacitance and noise. High frequency ZCS/ZVS switching, advanced power semiconductor packaging and thermal management provide high power density with low temperature gradients. Extensive use of silicon integration results in 1/3 the part count of a 1st Generation converter. The applications of the V300B3V3C150BL include off-line systems, distributed power and electric vehicles.

Parametrics

V300B3V3C150BL absolute maximum ratings: (1)+In to –In voltage: -0.5 to +375 V; (2)+In to –In voltage: 400 V; (3)PC to –In voltage: -0.5 to +7.0 V; (4)PR to –In voltage: -0.5 to +7.0 V; (5)+Out to –Out voltage: -0.5 to +4.79 V; (6)+Sense to –Out voltage: -0.5 to +4.79 V; (7)–Sense to –Out voltage: 1.0 V; (8)SC to –Out voltage: -0.5 to +1.5 V; (9)Isolation voltage (in to out): 3000 V; (10)Isolation voltage (in to base): 1550 V; (11)Isolation voltage (out to base): 500 V; (12)Storage temperature (C–Grade): -40 to +125 ℃; (13)Operating temperature (C–Grade): -20 to +100 ℃.

Features

V300B3V3C150BL features: (1)DC input range: 180 - 375V; (2)Input surge withstand: 400V for 100ms; (3)DC output: 3.3V; (4)Programmable output: 10 to 110%; (5)Regulation: ±0.2%; (6)Efficiency: 80%; (7)Maximum operating temperature: 100℃ at full load; (8)Power density: 60W/cubic inch; (9)Height above board: 0.43 in. (10,9 mm); (10)Parallel able, with N+M fault tolerance; (11)Low noise ZCS/ZVS architecture.

Diagrams

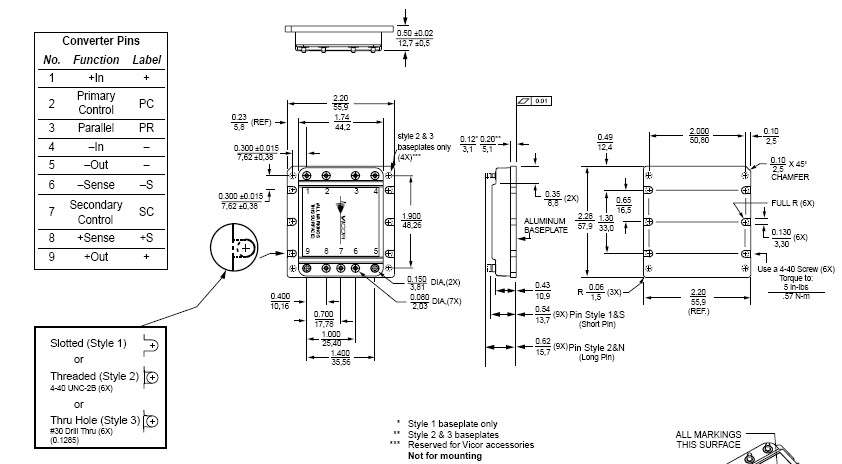

V300B3V3C150BL dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
V300B3V3C150BL
V300B3V3C150BL


CONVERTER MOD DC/DC 3.3V 150W

Data Sheet

0-1: $99.18
1-10: $95.76
10-50: $90.97
V300B3V3C150BL2
V300B3V3C150BL2


CONVERTER MOD DC/DC 3.3V 150W

Data Sheet

0-1: $95.40
V300B3V3C150BL3
V300B3V3C150BL3


CONVERTER MOD DC/DC 3.3V 150W

Data Sheet

0-1: $95.40
