RQ-65C

small package, voltage regulator, –0.3 to VIN +0.3 V, 1.5μA, SOT, 150 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $30.00~40.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	40.00 / Piece
11 ~ 100 :	35.00 / Piece
101 ~ 1000 :	30.00 / Piece

PartNumber:: RQ-65C

Brand:: Mean Well - Mean Well | D/C: 14+

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-02

From Other Seller

Part Number:RQ-65C
US $30.00 - 40.00
Quantity:

piece

Product Summary

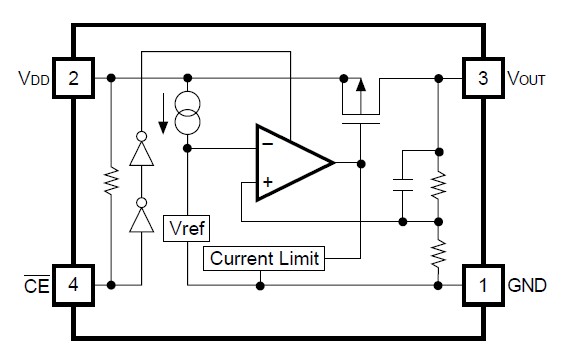

The RQ-65C is a voltage regulator IC with high accuracy output voltage and ultra-low supply current developed by CMOS process. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor for setting output voltage and a current limit circuit. The output voltage of the RQ-65C is fixed with high accuracy. Even if VOUT is shorted to GND, the included current limit circuit protects the IC from the destruction. Furthermore, the IC have a chip enable function, so that the supply current on standby can be minimized. Since the package for the RQ-65C is SC-82AB(Super Mini-mold)package, high density mounting of the ICs on boards is possible.

Parametrics

RQ-65C absolute maximum ratings: (1)VIN Input Voltage: 9 V; (2)VCE Input Voltage for CE/CE Pin: –0.3 to VIN +0.3 V; (3)VOUT Output Voltage: –0.3 to VIN +0.3 V; (4)IOUT Output Current: 150 mA; (5)PD Power Dissipation: 150 mW; (6)Topt Operating Temperature: –40 to +85 ℃; (7)Tstg Storage Temperature: –55 to +125 ℃.

Features

RQ-65C features: (1)Ultra-Low Supply Current TYP 1.5μA; (2)Standby Current TYP. 0.1μA; (3)Dropout Voltage TYP. 40mV (IOUT=1mA, RQ5RW30A/B); (4)Low Temperature-Drift Coefficient of; (5)Output Voltage TYP. ± 100ppm/℃; (6)Excellent Line Regulation TYP 0.05%/V; (7)High Accuracy Output Voltage ±2.0%; (8)Ultra-Small Package SC-82AB (Super Mini-mold); (9)Built-in Current Llimit Circuits.
