Product Summary
The PAH300N16CM is a thyristor module. Applications are: (1)AC phase control; (2)AC switch.
Parametrics
PAH300N16CM absolute maximum ratings (1)RMS On-State Current IT(RMS)50Hz Half Sine Wave condition Tc=96°C: 66 A; (2)Surge On-State Current IFSM 50 Hz Half Sine Wave,1Pulse Non-Repetitive: 600 A; (3)I Squared t I2 t 2msec to 10msec: 1800 A2 s; (4)Critical Rate of Turned-On Current di/dt VD=2/3VDRM, ITM=2• IO, Tj=125°C IG=200mA, diG/dt=0.2A/µs: 100 A/µs; (5)Peak Gate Power PGM: 5 W; (6)Average Gate Power PG(AV): 1 W; (7)Peak Gate Current IGM: 2 A; (8)Peak Gate Voltage VGM: 10 V; (9)Peak Gate Reverse Voltage VRGM: 5 V; (10)Operating JunctionTemperature Range Tjw: -40 to +125 °C; (11)Storage Temperature Range Tstg: -40 to +125 °C; (12)Isoration Voltage Viso Base Plate to Terminals, AC1min: 2500 V; (13)Mounting torque Case mounting Ftor M6 Screw: 2.4 to 3.5 N.M.
Features
PAH300N16CM features: (1)Isolated Base; (2)Dual Thyristors or Thyristor and Diode Anti-Parallel Circuit; (3)High Surge Capability; (4)UL Recognized, File No. E187184.

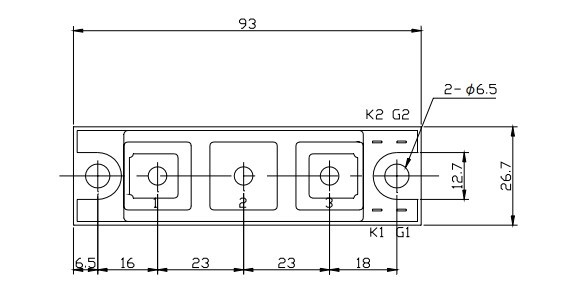

Diagrams
