Product Summary
The PAF600F48-28 is a high power DC-DC module.
Parametrics
PAF600F48-28 absolute maximum ratings: (1)Nominal Output Voltage: 28 V; (2)Output Current (Max): 21.5 A; (3)Max Output Power: 602 W; (4)Efficiency (Typ): 90 %; (5)Input Voltage range: 19 to 76 V; (6)Operating temperature: -40°C ~ +100°C.
Features
PAF600F48-28 features: (1)Full-brick type DC-DC Power Module suitable for information and telecommunication equipment; (2)Intensive control circuit, Zero Voltage Switching (ZVS); (3)High efficiency, low noise, high power density, good cost performance; (4)Maximum output power density: up to 5.53W/cm3; (5)Wide input voltage range: DC36-76V.

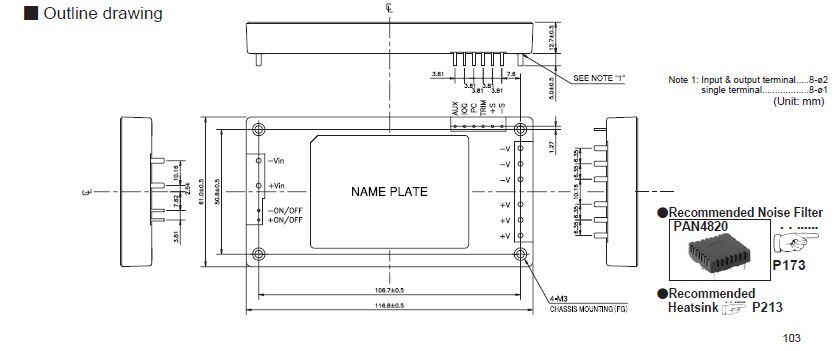

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PAF600F48-28 |
TDK-Lambda |
DC/DC Converters 602W 28V 21.5A |
Data Sheet |
|
|
|||||||||
PAF600F48-28/T |
TDK-Lambda |
DC/DC Converters 602W 28V 21.5A |
Data Sheet |
|
|
