Product Summary

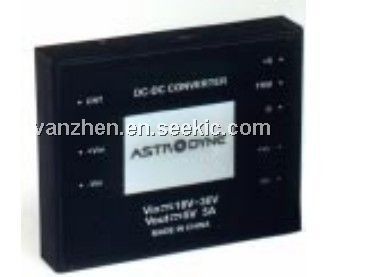

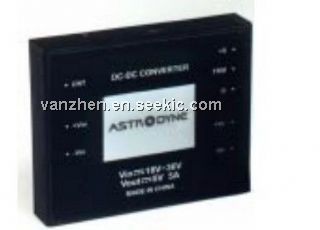

The AV25-48D12 is an isolated and regulated 25 WATT modular DC/DC converter.
Parametrics
AV25-48D12 absolute maximum ratings: (1)Oper temperature: -25 to +90 ℃; (2)Storage temperature: -40 to +105 ℃ ; (3)Maximum case temp: 100 ℃; (4)Input fusing: 24V: 5A, 48V: 2.5A; (5)MTBF: 2030 kHrs; (6)Input-out isolation: 500VDC; (7)In/out capacitance: 5nF; (8)Efficiency: 82%, typ; (9)Switching frequency: 330 kHz.
Features
AV25-48D12 features: (1)Wide 2 : 1 input range; (2)High efficiency; (3)Regulated outputs; (4)500V isolation; (5)Full EMI shielding.

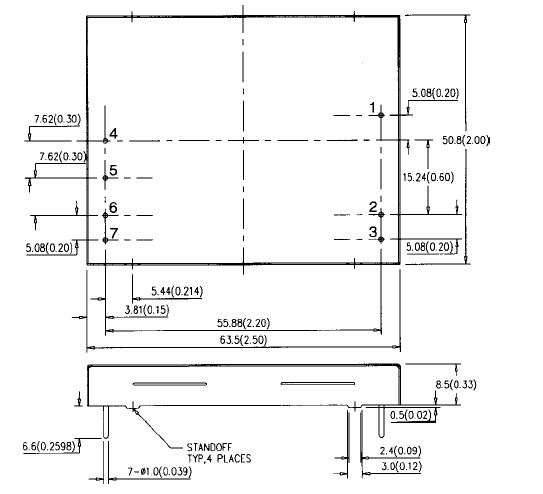

Diagrams
