Product Summary

The TLV70433DBVR is a low dropout (LDO) regulator designed for extremely power-sensitive applications. Quiescent current is virtually constant over the complete load current and ambient temperature range. The TLV70433DBVR is an ideal power management attachment to low-power microcontrollers, such as the MSP430. The TLV70433DBVR operates over a wide operating input voltage of 2.5 V to 24 V. Thus, it is an excellent choice for both battery-powered systems as well as industrial applications that see large line transients. The TLV70433DBVR is available in a 3-mm × 3-mm SOT23-5 package, which is ideal for cost-effective board manufacturing. The applications of the TLV70433DBVR are (1)Ultralow Power Microcontrollers; (2)E-Meters; (3)Fire Alarms/Smoke Detector Systems; (4)Handset Peripherals; (5)ndustrial/Automotive Applications; (6)Remote Controllers; (7)Zigbee Networks; (8)PDAs; (9)Portable, Battery-Powered Equipment.

Parametrics

TLV70433DBVR absolute maximum ratings: (1)Voltage IN: –0.3 to 24 V; (2)Current source OUT: Internally limited; (3)Operating junction, TJ: –40 +150 °C; (4)Temperature Storage, Tstg: –65 +150 °C; (5)Electrostatic Discharge Rating, Human body model (HBM)QSS 009-105 (JESD22-A114A): 2 kV; Charge device model (CDM)QSS 009-147 (JESD22-C101B.01): 500 V.

Features

TLV70433DBVR features: (1)Wide Input Voltage Range: 2.5 V to 24 V; (2)Low 3.2-μA Quiescent Current; (3)Ground Pin Current: 3.4 μA at 100-mA IOUT; (4)Stable with Any Capacitor (> 0.47 μF); (5)Operating Junction Temperature: –40°C to +125°C; (6)Available in SOT23-5 Package.

Diagrams

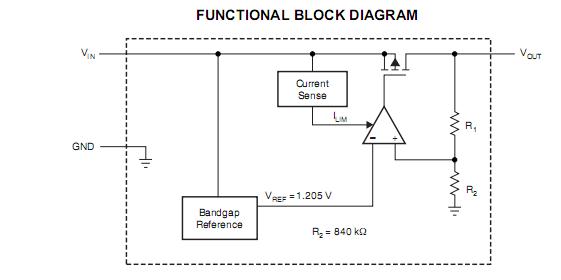

TLV70433DBVR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLV70433DBVR
TLV70433DBVR
Texas Instruments
Low Dropout (LDO) Regulators 150mAUltra-Low IQ High Vin LDO Reg
Data Sheet
0-2000: $0.19
2000-3000: $0.17
3000-6000: $0.17
6000-12000: $0.16
