Product Summary

The XPT8303 is a 3 W high efficiency D class audio power amplifier.

Parametrics

XPT8303 absoltue maximum ratings: (1)VCC, supply voltage, working mode: -0.3 to 6V; cut off mode: -0.3 to 7V; (2)VI, input voltage: -0.3 to VCC+0.3V; (3)TA, Work environment temperature: -40 to 85℃; (4)TJ, chip work temperature: -40 to 125℃; (5)Tstg, storage temperature: -65 to 150℃; (6)welding temperature: 260℃.

Diagrams

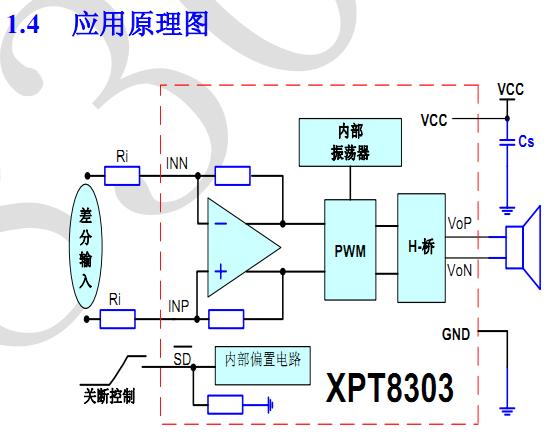

XPT8303 applications diagram
