Product Summary

The MIC5233YM5 is a High Input Voltage Low IQ μCap LDO Regulator. It is a 100mA highly accurate, low dropout regulator with high input voltage and ultra-low ground current. This combination of high voltage and low ground current makes the MIC5233YM5 ideal for multi-cell Li-Ion battery systems. A μCap LDO design, the MIC5233YM5 is stable with either ceramic or tantalum output capacitor. It only requires a 2.2μF capacitor for stability.

Parametrics

MIC5233YM5 absolute maximum ratings: (1)Input Supply Voltage: –20V to 38V; (2)Enable Input Voltage: –0.3V to 38V; (3)Junction Temperature: –40℃ to +125℃; (4)Storage Temperature: –65℃ to +150℃; (5)Input Supply Voltage: 2.3V to 36V; (6)Enable Input Voltage: 0V to 36V; (7)Junction Temperature (TJ): –40℃ to +125℃; (8)Package Thermal Resistance SOT-23-5(θJA): 235℃/W.

Features

MIC5233YM5 features: (1)Wide input voltage range: 2.3V to 36V; (2)Ultra low ground current: 18μA; (3)Low dropout voltage of 270mV at 100mA; (4)High output accuracy of ±2.0% over temperature; (5)μCap: stable with ceramic or tantalum capacitors; (6)Excellent line and load regulation specifications; (7)Zero shutdown current; (8)Reverse battery protection; (9)Reverse leakage protection; (10)Thermal shutdown and current limit protection.

Diagrams

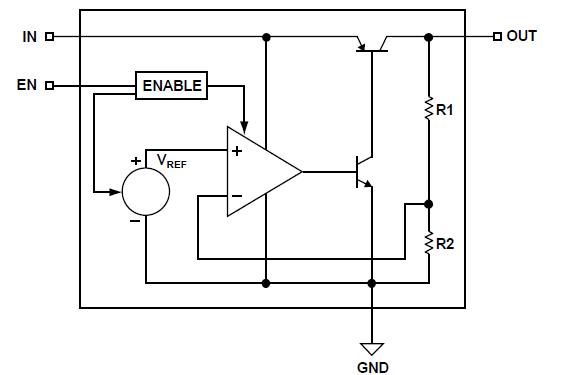

MIC5233YM5 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MIC5233YM5 TR
MIC5233YM5 TR


IC REG LDO ADJ .1A SOT23-5

Data Sheet

0-1: $1.16
1-25: $0.92
25-100: $0.69
100-250: $0.65
250-500: $0.62
