Product Summary
The MAX394 is a precision, low-voltage, quad, singlepole/
double-throw (SPDT) analog switch. The four independent
switches operate with bipolar supplies ranging
from ±2.7V to ±8V, or with a single supply of +2.7V to
+15V. The MAX394 offers low on-resistance (less than
35Ω), guaranteed to match within 2Ω between channels
and to remain flat over the analog signal range (Δ4Ω
max). It also offers break-before-make switching (10ns
typical), with turn-off times less than 75ns and turn-on
times less than 130ns. The MAX394 is ideal for portable
operation since quiescent current runs less than 1μA with
all inputs high or low.
Features
? Low On-Resistance, < 17Ω Typical (35Ω max)
? Guaranteed Matched On-Resistance Between
Channels, < 2Ω
? Guaranteed Flat On-Resistance over Analog
Signal Range, Δ4Ω Max
? Guaranteed Charge Injection < 10pC
? Guaranteed Off-Channel Leakage < 2.5nA at +85°C
? ESD Guaranteed > 2000V per Method 3015.7
? Single-Supply Operation (+2.7V to +15V)
Bipolar-Supply Operation (±2.7V to ±8V)
? TTL/CMOS-Logic Compatibility
? Rail-to-Rail Analog Signal Handling Capability
? Pin Compatible with MAX333, MAX333A

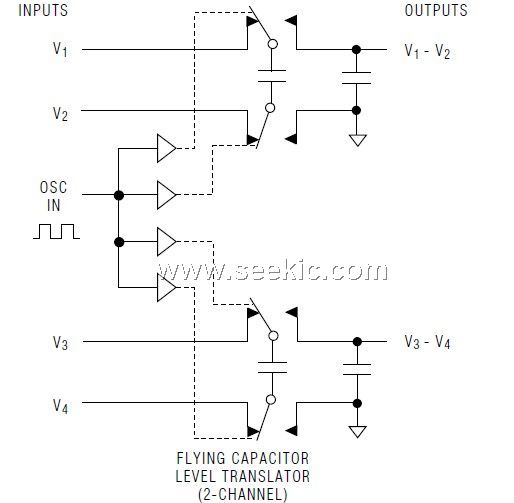

Diagrams
