BSC010NE2LS

bsc010ne2ls, n-channel power mosfet, 100 A, 20 V, 96 W, QFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: BSC010NE2LS

Brand:: Infineon Technologies - Infineon | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-18

From Other Seller

Part Number:BSC010NE2LS
US $0.30 - 0.50
Quantity:

piece

Product Summary

The bsc010ne2ls is an n-channel power mosfet. OptiMOS25V products are class leading power MOSFETs for highest power density and energy efficient solutions. Applications are (1)On board power for server; (2)Power managment for high performance computing; (3)Synchronous rectification; (4)High power density point of load converters.

Parametrics

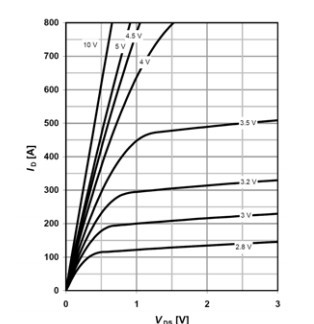

bsc010ne2ls absolute maximum ratings: (1)Continuous drain current ID: 100 A VGS =10 V, TC =25 °C; (2)Pulsed drain current 2)2)See figure 3 for more detailed information ID,pulse : 400 TC =25 °C; (3)Avalanche current, single pulse 3)3)See figure 13 for more detailed information IAS: 50°C; (4)Avalanche energy, single pulse EAS: 190 mJ ID =50 A,RGS =25 Ω; (5)Gate source voltage VGS: -20 to 20 V; (6)Power dissipation Ptot: 96 W TC =25 °C; (7)Operating and storage temperature Tj ,Tstg: -55 to 150 °C.

Features

bsc010ne2ls features: (1)Optimized for high performance buck converters; (2)100% avalanche tested; (3)Very low on-resistance RDS(on)@ VGS =4.5V; (4)N-channel; (5)Qualified according to JEDEC 1)for target applications; (6)Superior thermal resistance; (7)Pb-free plating; RoHS compliant; (8)Halogen-free according to IEC61249-2-21.
