Product Summary
The STD60NF3LL is a Power MOSFET. This application specific Power MOSFET is the third genaration of STMicroelectronics unique “Single Feature Size™” strip-based process. The resulting transistor shows the best trade-off between on-resistance ang gate charge. When used as high and low side in buck regulators, it gives the best performance in terms of both conduction and switching losses. This is extremely important for motherboards where fast switching and high efficiency are of paramount importance. The application of the STD60NF3LL is Switching application.
Parametrics
STD60NF3LL absolute maximum ratings: (1)Drain-source voltage (VGS = 0): 30 V; (2)Drain-gate voltage (RGS = 20 kΩ): 30 V; (3)Gate- source voltage: ± 16 V; (4)Drain current (continuous) at TC = 25℃: 60 A; (5)Drain current (continuous) at TC = 100℃: 43 A; (6)Drain current (pulsed): 240 A; (7)Single pulse avalanche energy: 700 mJ; (8)Storage temperature: -55 to 175 ℃.
Features
STD60NF3LL features: (1)Optimal RDS(ON) x Qg trade-off @ 4.5V; (2)Conduction losses reduced; (3)Switching losses reduced.

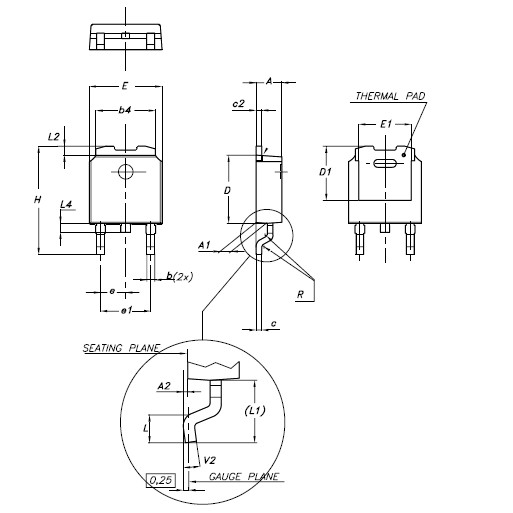

Diagrams
