Product Summary
The SI7414DN-T1 is an N-Channel 60-V (D-S) MOSFET. The applications of the SI7414DN-T1 include Primary Side Switch, Synchronous Rectifier and Motor Drives.
Parametrics
SI7414DN-T1 absolute maximum ratings: (1)Drain-Source Voltage: 60 V; (2)Gate-Source Voltage: ± 20 V; (3)Continuous Drain Current: 8.7 A; (4)Pulsed Drain Current: 30 A; (5)Continuous Source Current (Diode Conduction): 3.2 A; (6)Single Avalanche Current: 19 A; (7)Single Avalanche Energy (Duty Cycle 1 %): 18 mJ; (8)Maximum Power Dissipation: 3.8 W; (9)Operating Junction and Storage Temperature Rang: - 55 to 150 ℃.
Features
SI7414DN-T1 features: (1)Halogen-free According to IEC 61249-2-21 Available; (2)TrenchFET Power MOSFET; (3)PWM Optimized.

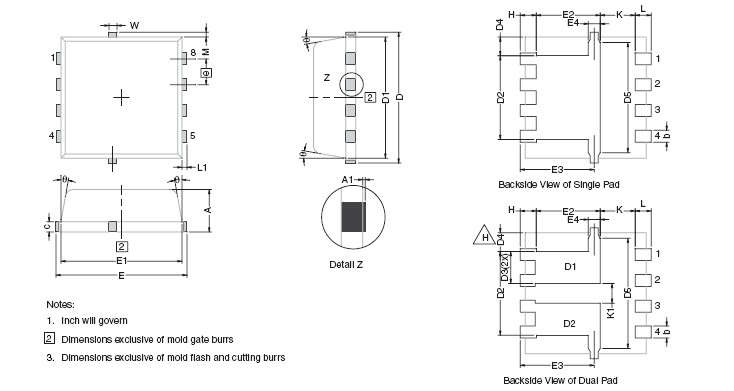

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SI7414DN-T1 |
Vishay/Siliconix |
MOSFET 60V 8A 0.025 OHMS |
Data Sheet |
Negotiable |
|
||||||||||||
|
SI7414DN-T1-E3 |
Vishay/Siliconix |
MOSFET 60V 8A 0.025 OHMS |
Data Sheet |
|
|
||||||||||||
|
SI7414DN-T1-GE3 |
Vishay/Siliconix |
MOSFET 60V 8.7A 3.8W 25mohm @ 10V |
Data Sheet |
|
|
||||||||||||
