Product Summary
The MUR3060PTG is a switch mode power rectifier. It is designed for switching power supplies, inverters and as free wheeling diodes, this state of the art device has many advantages.
Parametrics
MUR3060PTG absolute maximum ratings: (1)Average Rectified Forward Current (Rated VR), Per Leg: 15 @ TC = 145℃; (2)Average Rectified Forward Current (Rated VR), Per Device, IF(AV):30 @ TC = 150℃ Amps; (3)Peak Rectified Forward Current (Rated VR, Square Wave, 20 kHz, TC = 150℃), IFRM: 30 @ TC =145℃ Amps ; (4)Nonrepetitive Peak Surge Current (Surge applied at rated load conditions,halfwave, single phase, 60 Hz), Per Leg, IFSM: 150 Amps ; (5)Operating Junction and Storage Temperature, TJ，Tstg: -65 to +175℃.
Features
MUR3060PTG features: (1)Ultrafast 35 and 60 Nanosecond Recovery Time; (2)175℃ Operating Junction Temperature; (3)High Voltage Capability to 600 Volts; (4)Low Forward Drop; (5)Low Leakage Specified @ 150℃ Case Temperature; (6)Current Derating Specified @ Both Case and Ambient Temperatures; (7)Epoxy Meets UL94, VO @ 1/8; (8)High Temperature Glass Passivated Junction.

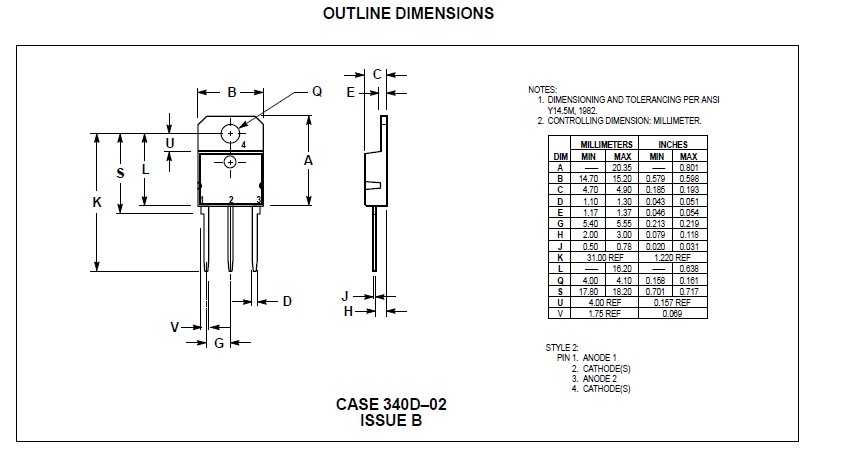

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MUR3060PTG |
ON Semiconductor |
Rectifiers 600V 30A UltraFast |
Data Sheet |
Negotiable |
|
||||||||
