Product Summary

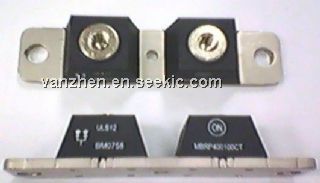

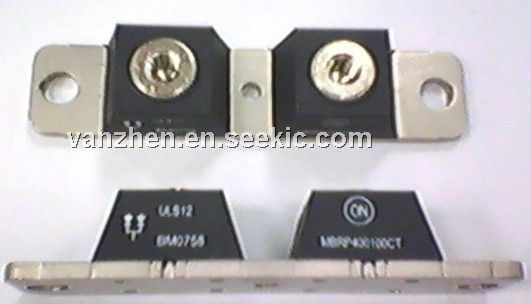

The MBRP20030CTL is a power rectifirer.
Parametrics
MBRP20030CTL absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 30 Volts; (2)Average Rectified Forward Current Per Leg (At Rated VR)TC = + 125°C Per Device IF(AV): 200 Amps; (3)Peak Repetitive Forward Current (At Rated VR, Square Wave, 20 kHz)TC = + 100°C IFRM: 200 Amps; (4)Non–repetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60 Hz)IFSM: 1500 Amps; (5)Peak Repetitive Reverse Surge Current (2 µs, 1 kHz)IRRM: 2 Amp; (6)Storage Temperature Tstg: – 55 to +150 °C; (7)Operating Junction Temperature TJ: – 55 to +150 °C; (8)Voltage Rate of Change (Rated VR)dv/dt: 10000 V/µs.
Features
MBRP20030CTL features: (1)Dual Diode Construction — May Be Paralleled for Higher Current Output; (2)Guardring for Stress Protection; (3)Low Forward Voltage Drop; (4)150°C Operating Junction Temperature; (5)Recyclable Epoxy; (6)Guaranteed Reverse Avalanche Energy Capability; (7)Improved Mechanical Ratings.

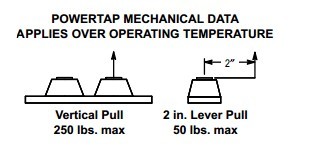

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MBRP20030CTL |
ON Semiconductor |
Schottky (Diodes & Rectifiers) 200A 30V Low Vf |
Data Sheet |
Negotiable |
|
||||
|
MBRP20030CTLG |
ON Semiconductor |
Schottky (Diodes & Rectifiers) 200A 30V Low Vf |
Data Sheet |
Negotiable |
|
||||
