Product Summary

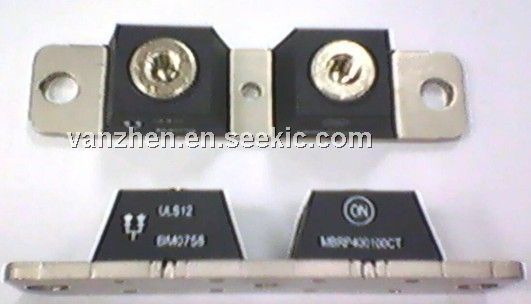

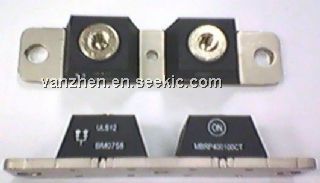

The MBR30050CT is a Dual Common-Cathode High-Voltage Schottky Rectifier. It is suitable for use in high frequency rectifier of switching mode power supplies, freewheeling diodes, dc-to-dc converters or polarity protection application.
Parametrics
MBR30050CT absolute maximum ratings: (1)Maximum repetitive peak reverse voltage VRRM: 100 V; (2)Working peak reverse voltage VRWM: 100 V; (3)Maximum DC blocking voltage VDC: 100 V; (4)Maximum average forward rectified current , IF(AV): 15 A; (5)Peak forward surge current 8.3 ms single half sine-wavesuperimposed on rated load per diode, IFSM: 275 A; (6)Peak repetitive reverse current, IRRM: 1.0 A; (7)Voltage rate of change (rated VR), dV/dt: 10000 V/us; (8)Operating junction and storage temperature range TJ, TSTG: - 65 to + 175℃.
Features
MBR30050CT features: (1)Guardring for overvoltage protection; (2)Lower power losses, high efficiency; (3)Low forward voltage drop; (4)Low leakage current; (5)High forward surge capability; (6)High frequency operation; (7)Meets MSL level 1, per J-STD-020C, LF maximum peak of 245℃ (for TO-263AB package); (8)Solder dip 260℃, 40 s (for TO-220AB and ITO-220AB package); (9)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
Diagrams
