Product Summary

The AO6400 is a n-channel enhancement mode field effect transistor. The AO6400 uses advanced trench technology to provide excellent RDS(ON) , low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a load switch or in PWM application.




Parametrics

AO6400 absolute maximum ratings: (1)Drain-Source Voltage VDS: 30V; (2)Gate-Source Voltage VGS: ±12V; (3)Continuous Drain Current A TA=25℃ ID: -5A; TA=70℃ ID: 6.9 A; (4)Pulsed Drain Current IDM: 35 A; (5)Power Dissipation TA=25℃ PD: 2W; TA=70℃ PD: 1.44W; (6)Junction and Storage Temperature Range TJ, TSTG: -55 to 150℃.

Features

AO6400 features: (1)VDS (V)= 30V; (2)ID = 6.9 A; (3)RDS(ON)< 28m&#8486; (VGS = 10V); (4)RDS(ON)< 33m&#8486; (VGS = 4.5V); (5)RDS(ON)< 52m&#8486; (VGS = 2.5V.

Diagrams

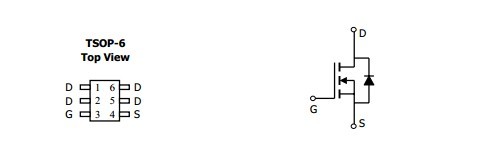

AO6400 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AO6400
AO6400

MOSFET N-CH 30V 6.9A 6-TSOP
Data Sheet
