Product Summary

The AO3403 is a P-channel enhancement mode field effect transistor. The AO3403 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. This device is suitable for use as a load switch or in PWM applications. Standard Product AO3403 is Pb-free (meets ROHS & Sony 259 specifications). AO3403L is a Green Product ordering option. The AO3403 is electrically identical.

Parametrics

AO3403 absolute maximum ratings: (1)Gate-source voltage: ±12 V; (2)Drain-source voltage: -30 V; (3)Continuous drain current A, TA=25°C: -2.6 A; TA=70°C: -2.2 A; (4)Pulsed drain Current B: -20 A; (5)Power dissipation A, TA=25°C: 1.4 W; TA=70°C: 1 W; (6)Junction and storage temperature range: -55 to 150 °C.

Features

AO3403 features: (1)VDS (V)= -30V; (2)ID = -2.6 A (VGS = -10V); (3)RDS(ON)< 130mΩ (VGS = -10V); (4)RDS(ON)< 180mΩ (VGS = -4.5V); (5)RDS(ON)< 260mΩ (VGS = -2.5V).

Diagrams

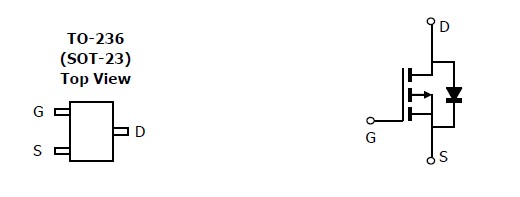

AO3403 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AO3403
AO3403


MOSFET P-CH -30V -2.6A SOT23
