AO3401

AO3401, transistor, -30V, -3.8 A, 2 W, SOT23

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: AO3401

Brand:: Alpha & Omega Semiconductors - AOS | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-17

From Other Seller

Part Number:AO3401
US $0.30 - 0.50
Quantity:

piece

Product Summary

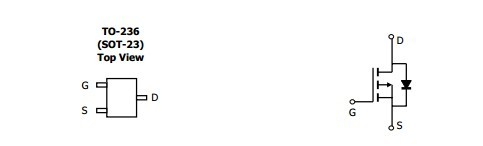

The AO3401 is a p-channel enhancement mode field effect transistor. The AO3401 uses advanced trench technology to provide excellent RDS(ON) , low gate charge and operation gate voltages as low as 2.5V. This device is suitable for use as a load switch or other general applications. Standard product AO3401A is Pb-free (meets ROHS & Sony 259 specification.

Parametrics

AO6400 absolute maximum ratings: (1)Drain-Source Voltage VDS: -30V; (2)Gate-Source Voltage VGS: ±12V; (3)Continuous Drain Current A TA=25℃ ID: -4.3A; TA=70℃ ID: -3.8 A; (4)Pulsed Drain Current IDM: -25 A; (5)Power Dissipation TA=25℃ PD: 2W; TA=70℃ PD: 1.4W; (6)Junction and Storage Temperature Range TJ, TSTG: -55 to 150℃.

Features

AO6400 features: (1)VDS (V)= -30V; (2)ID = -4.3A (VGS = -10V); (3)RDS(ON)< 46mΩ (VGS = -10V); (4)RDS(ON)< 55mΩ (VGS = -4.5V); (5)RDS(ON)< 80mW (VGS = -2.5V.
