Product Summary
The 301CNQ040 is a schottky rectifier. The 301CNQ040 center tap Schottky rectifier module series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection.
Parametrics
301CNQ040 absolute maximum ratings: (1)IF(AV)Rectangular waveform: 300 A; (2)VRRM Range: 40/45 V; (3)IFSM tp = 5 µs sine: 16 000 A; (4)VF 150 Apk, TJ = 125 °C (per leg): 0.59 V; (5)TJ Range: - 55 to 175 °C.
Features
301CNQ040 features: (1)175 °C TJ operation; (2)Center tap module; (3)Low forward voltage drop; (4)High frequency operation; (5)Guard ring for enhanced ruggedness and long term reliability; (6)Lead (Pb)-free; (7)Designed and qualified for industrial level.

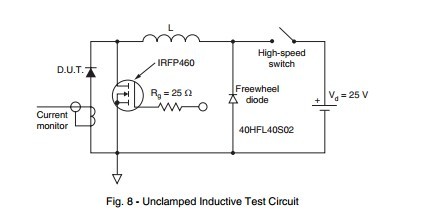

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 301CNQ040 |
|
DIODE SCHOTTKY 40V 300A TO-244AB |
Data Sheet |
Negotiable |
|
||||||||||||
