Product Summary
The 220CNQ030 is a Schottky Rectifier. The 220CNQ030 center tap Schottky rectifier module series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 ℃ junction temperature. Typical applications are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection.
Parametrics
220CNQ030 absolute maximum ratings: (1)Maximum average forward current: 110 A; (2)Maximum peak one cycle non-repetitive surge current per leg: 1950 A; (3)Non-repetitive avalanche energy per leg: 99 mJ; (4)Repetitive avalanche current per leg: 22 A.
Features
220CNQ030 features: (1)150 ℃ TJ operation; (2)Center tap module; (3)Low forward voltage drop; (4)High frequency operation; (5)Guard ring for enhanced ruggedness and long term reliability; (6)Lead (Pb)-free; (7)Designed and qualified for industrial level.

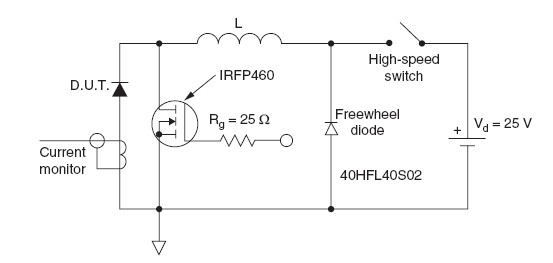

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 220CNQ030 |
|
DIODE SCHOTTKY 30V 220A TO-244AB |
Data Sheet |
Negotiable |
|
||||
|
220CNQ030PbF |
Other |
|
Data Sheet |
Negotiable |
|
||||
