Product Summary

The OV9655 is a quarter inch, low-voltage SXGA (1.3 MegaPixel) CMOS image sensor that offers the full functionality of a camera and image processor on a single chip, making it especially suitable for mobile applications. The OV9655 is built on OmniVision’s proprietary OmniPixel architecture which is a guarantee for excellent image quality because it reduces or eliminates common sources of image contamination such as fixed pattern noise and smearing to produce a clean, fully stable color image. OmniPixel’s unique pixel architecture also offers a high signal-to-noise ratio, enabling the OV9655 to perform exceptionally well in low-light conditions. The applications of the OV9655 are cellular and picture phones, PC multimedia, toys and digital still cameras.

Parametrics

OV9655 absolute maximum ratings: (1)active array size: 1280 x 1024 (SXGA); (2)power supply, core: 1.8VDC ± 10%; analog: 2.45 to 3.0VDC; I/O: 1.7V to 3.3V; (3)power requirements, active: 90 mW typical (15fps SXGA YUV format) standby: <20 μA; (4)temperature range, operation: -30°C to 70°C; stable image: 0°C to 50°C; (5)output formats (8-bit): YUV or RGB; (6)lens size: 1/4"; (7)chief ray angle: 25°; (8)maximum image transfer rate, SXGA: 15 fps; VGA, CIF and down scaling: 30 fps; (9)scan mode: progressive; (10)pixel size: 3.18 μm x 3.18 μm; (11)package dimensions: 5145 μm x 6145 μm.

Features

OV9655 features: (1)high sensitivity for low-light operation; (2)low operating voltage for embedded portable apps; (3)standard SCCB interface; (4)output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555), YUV (4:2:2) and YCbCr (4:2:2) formats; (5)supports image sizes: SXGA, VGA, CIF, and any size scaling down from CIF to 40x30; (6)VarioPixel method for sub-sampling; (7)automatic image control functions: AEC, AGC, AWB, ABF, and ABLC; (8)supports LED and flash strobe mode.

Diagrams

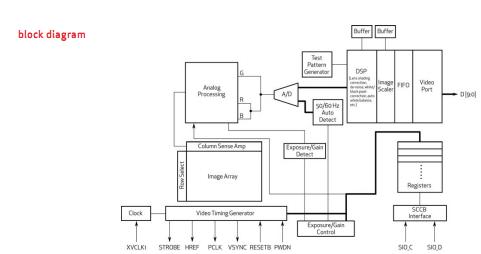

OV9655 block diagram
