Product Summary

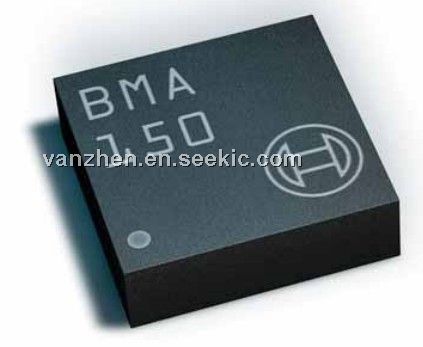

The BMA150 is a triaxial, low-g acceleration sensor IC with digital output for consumer market applications. The BMA150 allows measurements of acceleration in perpendicular axes as well as absolute temperature measurement. Applications are (1)HDD protection; (2)Menu scrolling, tap sensing function; (3)Gaming; (4)Pedometer/step-counting; (5)Drop detection for warranty logging; (6)Display profile switching; (7)Advanced system power management for mobile applications; (8)Shock detection.
Parametrics
BMA150 absolute maximum ratings: (1)Supply Voltage VDD and VDDIO: -0.3 to 4.25 V; (2)Storage Temperature range: -50 to +150 °C; (3)EEPROM write cycles Same Byte: 1000 cycles; (4)EEPROM retention At 55°C, after 1000 cycles: 10 years; (5)Mechanical Shock Duration ≤ 100μs: 10,000 g; Duration ≤ 1.0ms: 2,000 g; Free fall onto hard surfaces: 1.5 m; (6)ESD HBM, at any pin: 2 kV; CDM: 500 V.
Features
BMA150 features: (1)Three-axis accelerometer; (2)Temperature output; (3)Small package LGA package Footprint 3mm x 3mm, height 0.90mm; (4)Digital interface SPI (4-wire, 3-wire), I²C, interrupt pin; (5)Programmable functionality g-range ±2g/±4g/±8g, bandwidth 25-1500Hz, internal acceleration evaluation for interrupt trigger also enabling stand-alone capability (without use of microcontroller), self-test; (6)Ultra-low power ASIC Low current consumption, short wake-up time, advanced features for system power management; (7)Eco-friendly RoHS compliant, Lead(Pb)-free Halogen-free (part number 0 273 141 043 only).

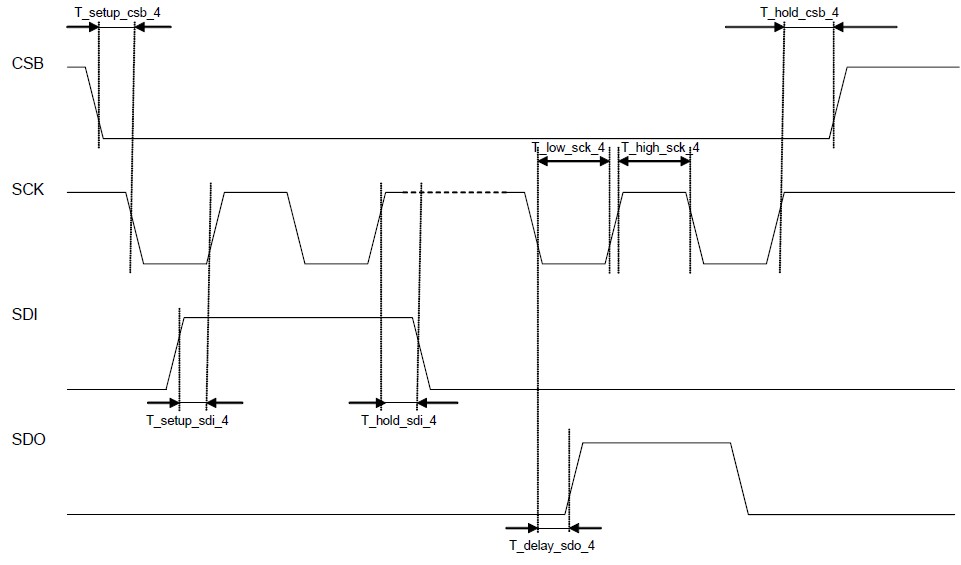

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BMA150 |
|
3-AXIS ACCELEROMETER DIGITAL I/F |
Data Sheet |
|
|
||||||||
 |
BMA150-SHUTL |
|
BMA150 SHUTTLE BOARD FOR DEV KIT |
Data Sheet |
|
|
||||||||
 |
BMA150-TRIBOX |
|
BMA150 TRIBOX DEMO BOARD W/USB |
Data Sheet |
Negotiable |
|
||||||||
