Product Summary

The A1101ELHLT-T is a continuous-time switch. It is next generation replacements for the popular Allegro 312x and 314x lines of unipolar switches. The A110x family, produced with BiCMOS technology, consists of devices that feature fast power-on time and low-noise operation. The A1101ELHLT-T programming is performed after packaging, to ensure increased switchpoint accuracy by eliminating offsets that can be induced by package stress. Unique Hall element geometries and lowoffset amplifiers help to minimize noise and to reduce the residual offset voltage normally caused by device overmolding, temperature excursions, and thermal stress.

Parametrics

A1101ELHLT-T absolute maximum ratings: (1)Supply voltage VCC: 30 V; (2)Reverse supply voltage VRCC: –30 V; (3)Output off voltage VOUT: 30 V; (4)Reverse output voltage VROUT: –0.5 V; (5)Output current IOUTSINK: 25 mA; (6)Magnetic flux density B: Unlimited G; (7)Operating ambient temperature TA Range E: –40 to 85 ºC; Range L: –40 to 150 ºC; (8)Maximum junction temperature TJ(max): 165 ºC; (9)Storage temperature Tstg: –65 to 170 ºC.

Features

A1101ELHLT-T features: (1)Continuous-time operation: Fast power-on time; Low noise; (2)Stable operation over full operating temperature range; (3)Reverse battery protection; (4)Solid-state reliability; (5)Factory-programmed at end-of-line for optimum performance; (6)Robust EMC performance; (7)High ESD rating; (8)Regulator stability without a bypass capacitor.

Diagrams

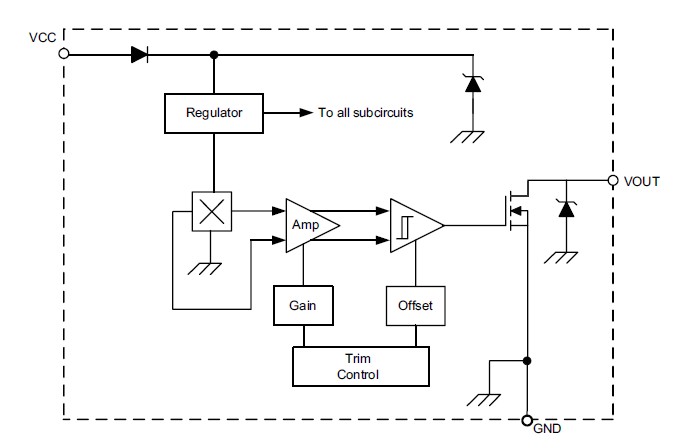

A1101ELHLT-T pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A1101ELHLT-T
A1101ELHLT-T

IC SWITCH HALL EFFECT SOT-23W
Data Sheet
0-1: $1.04
1-10: $0.92
10-50: $0.83
50-100: $0.73
100-250: $0.64
250-500: $0.56
500-1000: $0.45
1000-2500: $0.41
