Product Summary
The SKM150GAL124D is a fast IGBT4 module. Applications are (1)DC/DC – converter; (2)Brake chopper; (3)Switched reluctance motor; (4)DC – Motor.
Parametrics
SKM150GAL124D absolute maximum ratings: (1)VCES: 1200 V; (2)IC Tj = 175 °C Tc = 25 °C: 232 A; Tc = 80 °C 179 A; (3)ICnom: 150 A; (4)ICRM ICRM = 3xICnom: 450 A; (5)VGES: -20 to 20 V; (6)VCC = 800 V, VGE ≤ 15 V, VCES ≤ 1200 V Tj = 150 °C: 10 μs; (7)Tj: -40 to 175 °C.
Features
SKM150GAL124D features: (1)IGBT4 = 4. Generation (Trench)IGBT; (2)VCEsat with positive temperature coefficient; (3)High short circuit capability, self limiting to 6 x ICNOM; (4)Soft switching 4. Generation CAL.

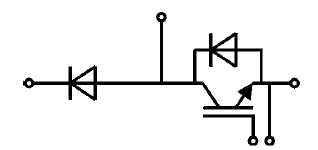

Diagrams
