Product Summary

The ps21767 is an intellimod module dual-in-line intelligent power module. Applications of the ps21767 include: AC100V~200V three-phase inverter drive for small power motor control.

Parametrics

ps21767 absolute maximum ratings: (1) Supply voltage Vcc: 450V (Applied between P-NU, NV, NW) ; (2) Supply voltage (surge) Vcc (surge) : 500V (Applied between P-NU, NV, NW) ; (3) Collector-emitter voltage VCES: 600V; (4) Each IGBT collector current±Ic: 30A (Tc=25°C) ; (5) Each IGBT collector current (peak) ±Icp: 60A (Tc=25°C, less than 1ms) ; (6) Collector dissipation Pc: 90.9W (Tc=25°C, per 1 chip) ; (7) Junction temperature Tj: -20 to +150°C.

Features

ps21767 features: (1) Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) protection; (2) Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC) ; (3) Corresponding to an SC fault (Lower-leg IGBT) or a UV fault (Lower-side supply) ; (4) Corresponding to an SC fault (Lower-leg IGBT) or a UV fault (Lower-side supply) ; (5) UL Approved : Yellow Card No. E80276.

Diagrams

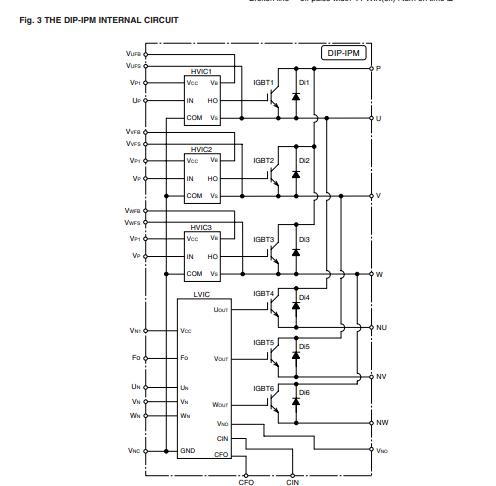

PS21767 internal circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PS21767
PS21767


MOD IPM 600V 30A MINI DIP

Data Sheet

0-1: $31.60
1-10: $29.55
10-100: $25.62
100-250: $23.91
250-500: $22.72
500-1000: $21.87
1000-2500: $21.18
2500-5000: $20.50
