Product Summary

APPLICATION
Acoustic noise-less 1.5kW/200V AC Class 3 phase inverters, motor control applications, and
motors with built-in small size inverter package

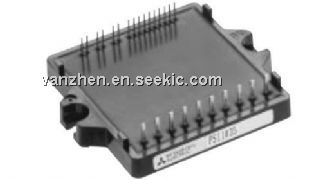

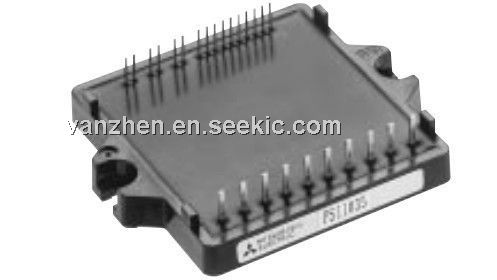

PACKAGE OUTLINES
MITSUBISHI SEMICONDUCTOR
PS11035
FLAT-BASE TYPE
INSULATED TYPE
INTEGRATED DRIVE, PROTECTION AND SYSTEM CONTROL FUNCTIONS:
? P-Side IGBTs : Drive circuit, high-level-shift circuit, bootstrap circuit supply scheme for Single Control-Power-Source drive, and under voltage (UV) protection.
? N-Side IGBTs : Drive circuit, DC-Link current sense and amplifier circuits for overcurrent protection, control-supply under-voltage
protection (UV), and fault output (FO) signaling circuit.
? Fault Output : N-side IGBT short circuit (SC), over-current (OC), and control supply under-voltage (UV).
? Inverter Analog Current Sense : N-Side IGBT DC-Link Current Sense.
? Input Interface : 5V CMOS/TTL compatible, Schmitt Trigger input, and Arm-Shoot-Through interlock protective function.
Type Name
PS11035
IO(100%)
7.0Arms
IO(150%; 60sec)
10.5Arms
Motor Rating
1.5 kW/200V AC
(Note 1) : The inverter output current is assumed to be sinusoidal and the peak current value of each of the
above loading cases is defined as : IOP= IO × √?2,
TC< 100°C

Features

 Converter bridge for 3 phase AC-to-DC power conversion.
? 3 phase IGBT inverter bridge configured by the latest 3rd.
generation IGBT and diode technology.
? Inverter output current capability IO(Note 1):
