Product Summary

PHT2508CF is a Thyristor module. The application of the PHT2508CF is Rectified For General Use.

Parametrics

PHT2508CF absolute maximum ratings: (1)Average Rectified Output Current: 250 A; (2)RMS On-State Current: 390 A; (3)Surge On-State Current: 4000 A; (4)I Squared t: 80000 A2s; (5)Critical Rate of Turned-On Current: 100 A/μs; (6)Peak Gate Power: 5 W; (7)Average Gate Power: 1 W; (8)Peak Gate Current: 2 A; (9)Peak Gate Voltage: 10 V; (10)Peak Gate Reverse Voltage: 5 V; (11)Operating Junction Temperature Range: -40 to +125 ℃; (12)Storage Temperature Range: -40 to +125 ℃.

Features

PHT2508CF features: (1)Isolated Base; (2)Single Thyristor Module; (3)High Surge Capability; (4)UL Recognized, File No. E187184.

Diagrams

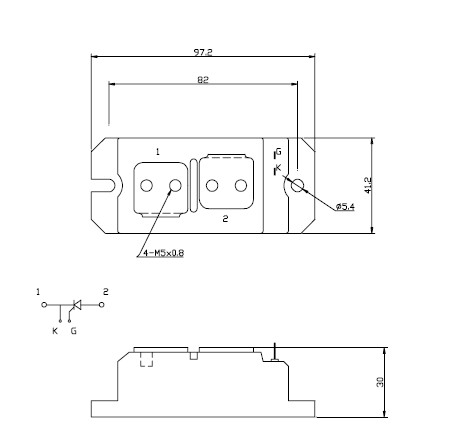

PHT2508CF dimension
