Product Summary
The MG300Q2YS61 is an IGBT module. Applications are (1)High power switching; (2)Motor control.
Parametrics
MG300Q2YS61 absolute maximum ratings: (1)Collector-emitter voltage VCES: 1200 V; (2)Gate-emitter voltage VGES: ±20 V; (3)Collector current DC (Tc = 80°C)IC: 300 A; (4)Forward current DC (Tc = 80°C)IF: 300 A; (5)Collector power dissipation (Tc = 25°C)PC: 2700 W; (6)Junction temperature Tj: 150 °C; (7)Storage temperature range Tstg: -40 to 125 °C; (8)Isolation voltage visol: 2500 (AC 1 minute)Vrms; (9)Screw torque terminal: 3 N·m; Mounting: 3 N·m.
Features
MG300Q2YS61 features: (1)High input impedance; (2)High speed: tf = 0.3 μs (max)Inductive load; (3)Low saturation voltage: VCE (sat)= 2.6 V (max); (4)Enhancement-mode; (5)Includes a complete half bridge in one package.; (6)The electrodes are isolated from case.

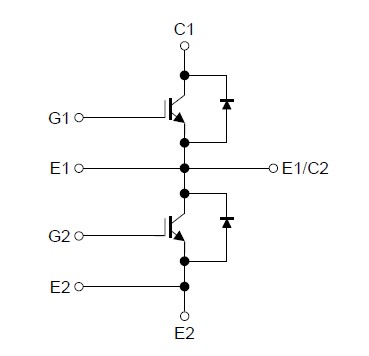

Diagrams
