Product Summary

The MG150N2YS40 is a transistor module designed for use in various types of motor control and other high power switching applications and consist of insulated type darlington transistors. The electrodes are fully isolated from heat sink. Single ended electrode construction is used to greatly simplify mounting.

Parametrics

MG150N2YS40 absolute maximum ratings: (1)VCBO: 400 V; (2)VCEO: 400 V; (3)VCEO(SUS): 450 V; (4)VEBO: 6 V; (5)Ic(DC): 150 A; (6)IB: 5 A; (7)PC: 800 W; (8)Tj: 150 ℃; (9)Tstg: -40 to 125℃; (10)VIsol: 2500V.

Features

MG150N2YS40 features: (1)Electrodes are isolated from the heat sink; (2)High DC current gain; (3)Low saturation voltage; (4)Wide safe operating area.

Diagrams

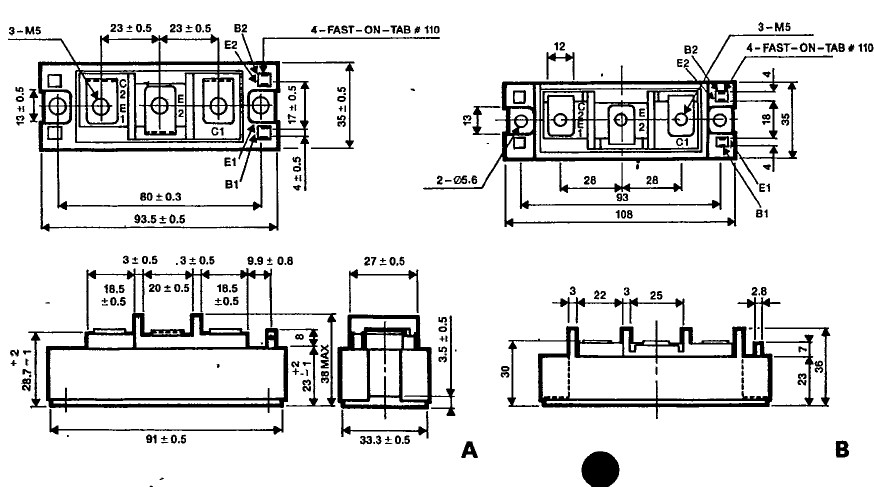

MG150N2YS40 pin connection
