Product Summary
The FSBS10SM601 is an advanced smart power module (SPMTM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low-power inverter-driven application like air conditioner and washing machine. The FSBS10SM601 combines optimized circuit protection and drive matched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and short- circuit protection. The high speed built-in HVIC provides opto- coupler-less single-supply IGBT gate driving capability that further reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided negative dc terminals. The applications of the FSBS10SM601 include AC 100V ~ 253V three-phase inverter drive for small power ac motor drives and Home appliances applications like air conditioner and washing machine.
Parametrics
FSBS10SM601 absolute maximum ratings: (1)VPN, Supply Voltage: 450 V; (2)VPN(Surge), Supply Voltage (Surge): 500 V; (3)VCES, Collector-emitter Voltage: 600 V; (4)±IC, Each IGBT Collector Current: 10 A; (5)±ICP, Each IGBT Collector Current (Peak): 20 A; (6)PC, Collector Dissipation: 27 W; (7)TJ, Operating Junction Temperature: -20 ~ 125℃.
Features
FSBS10SM601 features: (1)UL Certified No.E209204(SPM27-BA package) ; (2)600V-10A 3-phase IGBT inverter bridge including control ICs for gate driving and protection ; (3)Divided negative dc-link terminals for inverter current sensing applications; (4)Single-grounded power supply due to built-in HVIC; (5)Isolation rating of 2500Vrms/min; (6)Very low leakage current due to using ceramic substrate.

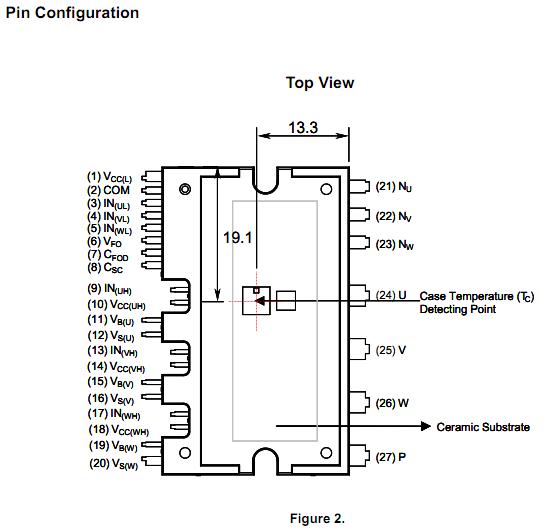

Diagrams
