Product Summary

The FP10R12KE3 is an IGBT module.

Parametrics

FP10R12KE3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current, IC: 10A; (3)repetitive peak collector current, ICRM: 20A; (4)total power dissipation, Ptot: 78W; (5)gate-emitter peak voltage, VGES: ±20V.

Features

FP10R12KE3 features: (1)repetitive peak reverse voltage, VRRM: 1200V; (2)DC forward current, IF: 10A; (3)repetitive peak forward curretn, IFRM: 20A; (4)I2t-value, I2t: 20 A2s.

Diagrams

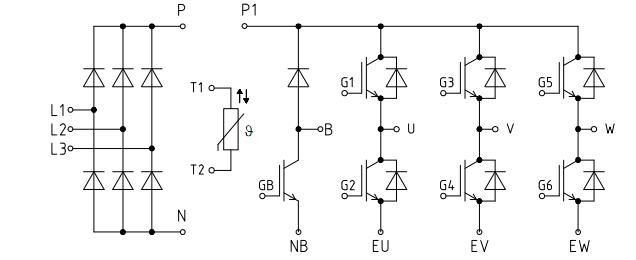

FP10R12KE3 block diagram
