Product Summary

The FF450R12KT4 is a 62mm C-series module with fast trench/fieldstop IGBT4 and emitter controlled diode.

Parametrics

FF450R12KT4 absolute maximum ratings: (1)Collector-emitter voltage,Tvj=25°C:1200V; (2)DC-collector current:Tc=100°C,Tvj=175°C:450A;Tc=25°C,Tvj=175°C:580A; (3)Repetitive peak collector current:900A; (4)Total power dissipation:2400W; (5)Gate-emitter peak voltage:±20V.

Diagrams

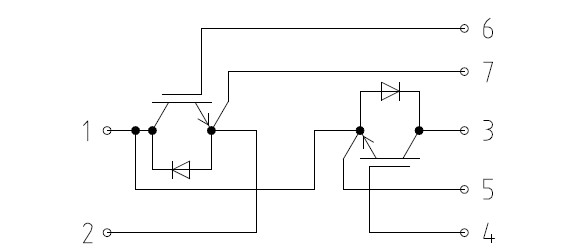

FF450R12KT4 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FF450R12KT4
FF450R12KT4

Infineon Technologies

IGBT Modules N-CH 1.2KV 580A

Data Sheet

0-6: $133.78
6-10: $120.40
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FF450
FF450

Cooper Bussmann

Fuses 450A 550V AC/400VDC

Data Sheet

0-1: $121.67
1-10: $116.15
