Product Summary

The FF400R12KS4 is an IGBT module.

Parametrics

FF400R12KS4 maximum rated values: (1)Collector-emitter voltage VCES: 1200 V; (2)IC, nom.: 400 A; (3)DC-collector current IC: 580 A; (4)Repetitive peak collector current ICRM: 800 A; (5)Total power dissipation Ptot: 2000 W; (6)Gate-emitter peak voltage VGES: +/- 20 V.

Features

FF400R12KS4 characteristic values: (1)VCE sat: 1.70 to 2.15 V; (2)Collector-emitter saturation voltage: 2.00 V; (3)Gate threshold voltage: 5.0 to 6.5 V; (4)Jnput capacitance Cies: 1.1nF; (5)Collector-emitter cut-off current ICES: 5.0mA; (7)Gate-emitter leakage current IGES: 400nA.

Diagrams

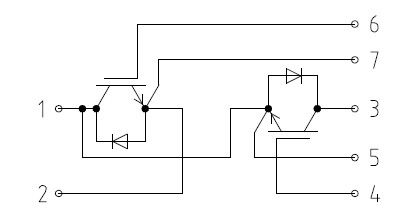

FF400R12KS4 pin connection
